Peugeot introduce its new 48V hybrid technology for the 3008 and 5008 Hybrid.
18-02-2023 15:36 - CAR NEWS
2023 will be a "electric year" for Peugeot, with the presentation of new technologies in its range. This will include the new HYBRID system designed by Stellantis, which will be offered on the Peugeot 3008 and 5008, before being extended to other models. It will complement the already extensive family of electrified engines, including plug-in hybrid, 100% electric and fuel cell variants.
The #peugeot 48V HYBRID system consists of a new-generation 136bhp PureTech petrol engine, coupled with a new 6-speed dual-clutch electrified gearbox that includes an electric motor. With a battery that recharges while driving, this technology provides extra torque at low engine speeds and lowers fuel consumption by up to 15%. In urban driving, a C-segment SUV equipped with the HYBRID system can thus operate more than 50% of the time in 100% zero-emission electric mode.

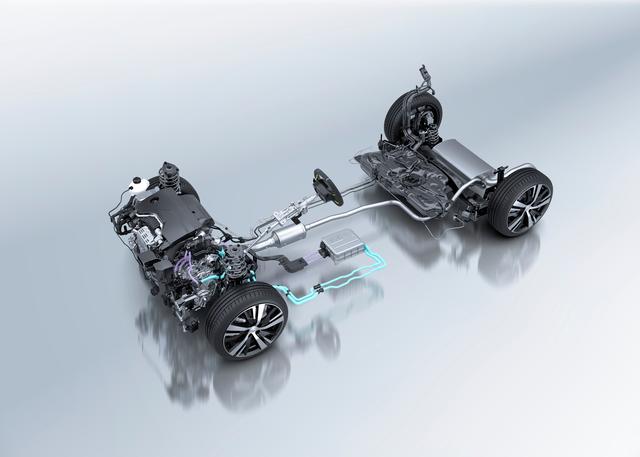

All the parts that make up this new engine are located under the bonnet, except for the 48V battery, which is installed under the front left seat of the Peugeot 3008 and 5008.
The 1.2 litre PureTech petrol engine.
This is a new generation of PureTech petrol engine specially developed for optimal integration with hybridisation:
• 3 cylinders and 1199cm3,
• Power 13 hp (100kW) at 5500rpm,
• Torque 230Nm at 1750rpm,
• Variable geometry turbocharger for improved engine performance,
• Timing chain (low maintenance costs),
• Miller cycle operation for better combustion thermal efficiency,
• Euro 6.e standard.
The e-DCS6 (Dual Clutch System) gearbox.
The Peugeot 48V Hybrid engine includes a new electrified 6-speed dual clutch gearbox without torque break specially designed for hybrid systems. The gearbox housing also houses the electric engine, the inverter and the ECU, which optimises the size and weight of the vehicle and guarantees excellent driving performance.
The e-Motor.
The permanent magnet synchronous electric motor, built into the gearbox, develops a peak power of 21kW (28hp) and a torque of 55Nm. It allows the vehicle to be driven 100% electrically for low torque requirements and assists the combustion engine to reduce its consumption. During deceleration, the engine acts as a generator to recharge the hybrid system's 48V battery. It also provides the main start for the combustion engine with the assistance of the belt-starter.
The belt-starter.
This 48V-powered starter ensures that the combustion engine is restarted via the accessory belt. It allows fast and transparent starts.
The 48V hybrid battery
The 48V Lithium-Ion battery has a gross capacity of 898Wh and an available capacity of 432Wh. It is designed to maintain the same level of performance throughout the life of the vehicle and comes with an original 8-year/160,000 km warranty.
The 48V battery is installed under the front left seat. This set-up offers many advantages over a rear seat installation and means that:
• The entire interior space is available,
• The full volume of the boot is maintained,
• Energy losses related to the length of the cables are optimised,
• Driving pleasure is preserved thanks to the proper distribution of the masses (battery in the centre of the vehicle).
Two electrical networks
The #peugeot3008 and 5008 embed two electrical networks. A low voltage 12V network to supply the car's equipment and a high voltage 48V network to supply the hybrid system. Electricity is produced solely by the 48V e-motor. A DC voltage converter is used to transfer the electricity produced to the car's 12V network.
